Form Cells

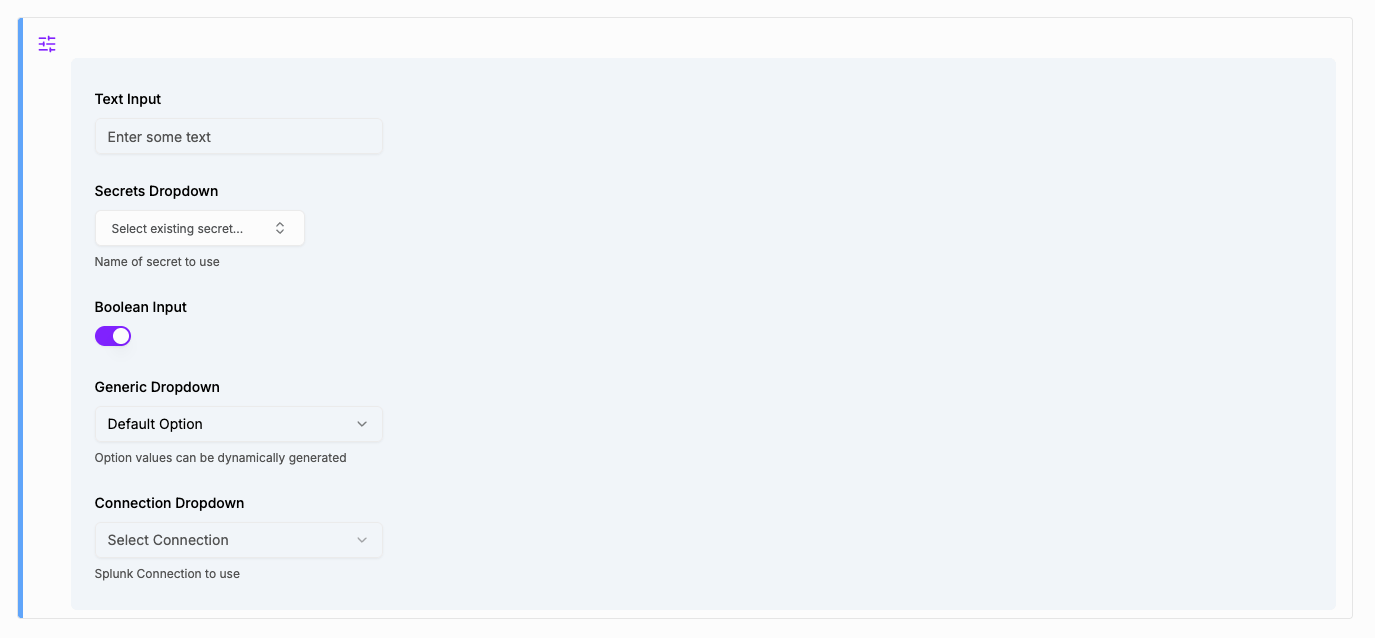

Form cells provide interactive form inputs that collect user input and make it available to subsequent cells. Use the SpinForms class to create form elements like checkboxes, text boxes, dropdowns, and connection selectors.

When to Use Form Cells

Use form cells when input values will be used by subsequent cells. Form cells create reusable inputs that later cells can reference. This is ideal for notebooks where users configure settings upfront (e.g., selecting an environment, entering a service name) that affect multiple downstream operations. Use @param syntax in Python cells when you need to parameterize a single cell’s behavior. The @param values are scoped to that one cell and are best for cell-specific configuration that doesn’t need to be shared.

Important Notes

Re-execution: Form cells automatically re-run when a session starts, when any cell before the form finishes running, or when the user interacts with any form input.
Performance: Because form cells re-run frequently, avoid expensive operations like API calls or database queries directly in form cells. Instead, perform data fetching in Python cells before the form cell and reference the results using CellResult.get_from_cell().
Variable naming: The form input id should be a valid Python variable name and should match the variable you assign the return value to.
Form-only usage: SpinForms functions can only be used in form cells, not in regular Python cells. Use the @param syntax for Python cell parameters.

Available Input Types

Checkbox

Returns a boolean value.

enable_debug = SpinForms.checkbox(
    id="enable_debug",
    label="Enable Debug Mode",
    description="Turn on verbose logging",
    default=False
)

Textbox

Returns a string value.

service_name = SpinForms.textbox(
    id="service_name",
    label="Service Name",
    description="Enter the name of the service to investigate",
    default="",
    placeholder="e.g., api-gateway"
)

Returns the selected string value.

Static Options

Provide a list of strings for simple dropdown options:

environment = SpinForms.dropdown(
    id="environment",
    label="Environment",
    description="Select the target environment",
    choices=["development", "staging", "production"],
    default="development"
)

Options with Display Labels

Use a dictionary to show different labels than the underlying values:

region = SpinForms.dropdown(
    id="region",
    label="Region",
    description="Select the AWS region",
    choices={
        "us-east-1": "US East (N. Virginia)",
        "us-west-2": "US West (Oregon)",
        "eu-west-1": "EU (Ireland)"
    },
    default="us-east-1"
)

Dynamic Options from Previous Cells

Populate dropdown options from the output of a previous cell: Initial shell cell (id=get_context_list) to get a list of kubectl context names, delimited by newline

kubectl config get-contexts -o=name

Form cell asking the user to select a valid context name

kubectx = SpinForms.dropdown(
    id="kubectx",
    label="Context Name",
    description="Select a context to use",
    choices=get_context_list.splitlines()
)

Enable multiple selections by setting multi=True. Returns a list of selected values instead of a single string.

selected_regions = SpinForms.dropdown(
    id="selected_regions",
    label="Select Regions",
    description="Choose one or more regions to deploy to",
    choices=["us-east-1", "us-west-2", "eu-west-1", "ap-southeast-1"],
    multi=True
)
# selected_regions is a list: ["us-east-1", "eu-west-1"]

# Iterate over selected values
for region in selected_regions:
    print(f"Deploying to {region}")

With display labels:

selected_services = SpinForms.dropdown(
    id="selected_services",
    label="Services to Restart",
    description="Select which services to restart",
    choices={
        "api": "API Gateway",
        "auth": "Authentication Service",
        "db": "Database Service",
        "cache": "Cache Service"
    },
    multi=True
)
# selected_services contains the keys: ["api", "cache"]

Connections

Returns the selected connection name. Useful for letting users select from configured integrations.

# Show only Datadog and Prometheus connections
monitoring_connection = SpinForms.connections(
    id="monitoring_connection",
    label="Monitoring Connection",
    description="Select the monitoring system to query",
    schemes=["ddog", "prometheus"],
    default=""
)

# Show all available connections (empty schemes list)
any_connection = SpinForms.connections(
    id="any_connection",
    label="Connection",
    description="Select any connection",
    schemes=[],
    default=""
)

Secrets

Returns the selected secret name. Use this when you want users to choose which credential to use at runtime.

secret_name_var = SpinForms.secrets(
    id="secret_name_var",
    label="API Key",
    description="Select the API key to use",
    default=""
)

Using the Selected Secret in Subsequent Cells

Since the secrets form returns the name of the secret (not the value), use {{secret_var:variable_name}} in non-Python cells to retrieve the actual secret value: Form Cell:

secret_name_var = SpinForms.secrets(
    id="secret_name_var",
    label="API Key",
    description="Select the API key to use"
)

Shell Cell:

# Use secret_var: because the secret name is in a variable
curl -H "Authorization: Bearer {{secret_var:secret_name_var}}" https://api.example.com/data

Python Cell:

# In Python, pass the variable directly to get_secret
api_key_value = SpinSecrets.get_secret(secret_name_var)

Use {{secret:SECRET_NAME}} when the secret name is static. Use {{secret_var:variable_name}} when the secret name is stored in a variable (e.g., from a form dropdown).

Time Range

Returns a tuple of two Python datetime objects representing the earliest and latest times in the range.

earliest, latest = SpinForms.timerange(
    id="query_time",
    label="Query Time Range",
    description="Select the time range for your query",
    default_earliest="-24h",
    default_latest="now"
)

Time Expression Syntax

The time range picker supports various time expressions:

Expression	Description
`now`	Current time
`-15m`	15 minutes ago
`-1h`	1 hour ago
`-24h`	24 hours ago
`-7d`	7 days ago
`-30d`	30 days ago
`@w0`	Start of current week (Sunday)
`@mon`	Start of current month
`-1d@d`	Start of yesterday
`-1h@h`	Start of the hour, 1 hour ago
`2025-01-01T00:00:00Z`	Absolute ISO timestamp

Using Time Range Values

The returned datetime objects can be used directly with time-based APIs:

earliest, latest = SpinForms.timerange(
    id="metrics_time",
    label="Metrics Time Range",
    default_earliest="-1h",
    default_latest="now"
)

# Use with epoch timestamps
start_epoch = int(earliest.timestamp())
end_epoch = int(latest.timestamp())

# Use with ISO format strings
start_iso = earliest.isoformat()
end_iso = latest.isoformat()

# Use with strftime
start_formatted = earliest.strftime("%Y-%m-%d %H:%M:%S")

Validation

Validate form inputs by raising SpinForms.ValidationError. The error message will be displayed next to the corresponding form input.

username = SpinForms.textbox(
    id="username",
    label="Username",
    description="Enter your username",
    placeholder="john.doe"
)

# Validate minimum length
if not username:
    raise SpinForms.ValidationError("username", "Username is required")

if len(username) < 3:
    raise SpinForms.ValidationError("username", "Username must be at least 3 characters")

# Validate format
import re
if not re.match(r'^[a-zA-Z0-9._-]+$', username):
    raise SpinForms.ValidationError("username", "Username can only contain letters, numbers, dots, dashes, and underscores")

Conditional Validation

environment = SpinForms.dropdown(
    id="environment",
    label="Environment",
    choices=["development", "staging", "production"]
)

# Require confirmation for production
if environment == "production":
    confirm = SpinForms.checkbox(
        id="confirm_production",
        label="Confirm Production",
        description="I understand this will affect production systems"
    )
    if not confirm:
        raise SpinForms.ValidationError("confirm_production", "You must confirm production deployments")

Using Form Values in Subsequent Cells

Form cell variables are available to all subsequent cells in the notebook.

In Python Cells

Reference form variables directly by their ID:

# Python cell following a form cell
print(f"Selected environment: {environment}")
print(f"Debug mode enabled: {enable_debug}")

# Use the values in your logic
if environment == "production" and not enable_debug:
    print("Running in production mode with standard logging")

In Non-Python Cells

Use the {{variable_name}} template syntax to reference form values in REST cells, LLM cells, Shell cells, and integration cells: REST Cell:

GET https://api.example.com/{{environment}}/services/{{service_name}}/status

Shell Cell:

kubectl get pods -n {{environment}} -l app={{service_name}}

LLM Cell:

Analyze the following metrics for the {{service_name}} service in {{environment}}:

{{datadog_1}}

Dependent Form Elements

Form cells can reference results from previous cells to create dynamic forms.

Example: Cascading Dropdowns

Cell 1 (Python): Fetch available regions

# Cell ID: fetch_regions
import httpx

response = httpx.get("https://api.example.com/regions")
regions = response.json()  # Returns ["us-east-1", "us-west-2", "eu-west-1"]

Cell 2 (Python): Fetch clusters for selected region

# Cell ID: fetch_clusters
import httpx

response = httpx.get(f"https://api.example.com/regions/{region}/clusters")
clusters = response.json()  # Returns list of cluster names

Cell 3 (Form): Let user select region, then cluster

# Get regions from cell 1
regions = CellResult.get_from_cell("fetch_regions").get_data()
region = SpinForms.dropdown(
    id="region",
    label="Region",
    choices=regions
)

if region:
    # Get clusters from cell 2 (which used the selected region)
    clusters = CellResult.get_from_cell("fetch_clusters").get_data()
    cluster = SpinForms.dropdown(
        id="cluster",
        label="Cluster",
        choices=clusters
    )

Example: Conditional Form Inputs

# Primary selection
action = SpinForms.dropdown(
    id="action",
    label="Action",
    choices=["restart", "scale", "rollback"]
)

# Show different inputs based on action
if action == "scale":
    replica_count = SpinForms.textbox(
        id="replica_count",
        label="Replica Count",
        description="Number of replicas (1-10)",
        placeholder="3"
    )
    # Validate replica count
    if replica_count:
        try:
            count = int(replica_count)
            if count < 1 or count > 10:
                raise SpinForms.ValidationError("replica_count", "Must be between 1 and 10")
        except ValueError:
            raise SpinForms.ValidationError("replica_count", "Must be a valid number")

elif action == "rollback":
    versions = ["v1.2.3", "v1.2.2", "v1.2.1", "v1.2.0"]
    target_version = SpinForms.dropdown(
        id="target_version",
        label="Target Version",
        description="Select version to rollback to",
        choices=versions
    )

# Always show dry run option
dry_run = SpinForms.checkbox(
    id="dry_run",
    label="Dry Run",
    description="Simulate the action without making changes",
    default=True
)

Complete Example

This example shows a complete deployment configuration form: Cell 1 (Python): Fetch available environments

# Cell ID: get_environments
environments = ["development", "staging", "production"]

Cell 2 (Python): Fetch services for the workspace

# Cell ID: get_services
services = ["api-gateway", "user-service", "payment-service", "notification-service"]

Cell 3 (Form): Deployment configuration

# Get options from previous cells
environments = CellResult.get_from_cell("get_environments").get_data()
services = CellResult.get_from_cell("get_services").get_data()

# Environment selection
environment = SpinForms.dropdown(
    id="environment",
    label="Environment",
    description="Target deployment environment",
    choices=environments
)

if not environment:
    raise SpinForms.ValidationError("environment", "Please select an environment")

# Service selection
service = SpinForms.dropdown(
    id="service",
    label="Service",
    description="Service to deploy",
    choices=services
)

if not service:
    raise SpinForms.ValidationError("service", "Please select a service")

# Version input
version = SpinForms.textbox(
    id="version",
    label="Version",
    description="Docker image tag to deploy",
    placeholder="v1.2.3"
)

if not version:
    raise SpinForms.ValidationError("version", "Version is required")

# Production safety checks
if environment == "production":
    confirm = SpinForms.checkbox(
        id="confirm",
        label="Confirm Production Deployment",
        description="I have verified this change is ready for production"
    )
    if not confirm:
        raise SpinForms.ValidationError("confirm", "Production deployments require confirmation")

# Deployment options
dry_run = SpinForms.checkbox(
    id="dry_run",
    label="Dry Run",
    description="Preview changes without applying",
    default=True
)

notify_slack = SpinForms.checkbox(
    id="notify_slack",
    label="Notify Slack",
    description="Send deployment notification to #deployments channel",
    default=True
)

Cell 4 (Shell): Execute deployment

#!/bin/bash
echo "Deploying {{service}} version {{version}} to {{environment}}"

if [ "{{dry_run}}" = "True" ]; then
    echo "[DRY RUN] Would execute: kubectl set image deployment/{{service}} {{service}}={{version}} -n {{environment}}"
else
    kubectl set image deployment/{{service}} {{service}}={{version}} -n {{environment}}
fi

Overview

User Guide

Integrations

When to Use Form Cells

Important Notes

Available Input Types

Checkbox

Textbox

Static Options

Options with Display Labels

Dynamic Options from Previous Cells

Connections

Secrets

Using the Selected Secret in Subsequent Cells

Time Range

Time Expression Syntax

Using Time Range Values

Validation

Conditional Validation

Using Form Values in Subsequent Cells

In Python Cells

In Non-Python Cells

Dependent Form Elements

Example: Cascading Dropdowns

Example: Conditional Form Inputs

Complete Example

Overview

User Guide

Integrations

​When to Use Form Cells

​Important Notes

​Available Input Types

​Checkbox

​Textbox

​Dropdown

​Static Options

​Options with Display Labels

​Dynamic Options from Previous Cells

​Multi-Select Dropdown

​Connections

​Secrets

​Using the Selected Secret in Subsequent Cells

​Time Range

​Time Expression Syntax

​Using Time Range Values

​Validation

​Conditional Validation

​Using Form Values in Subsequent Cells

​In Python Cells

​In Non-Python Cells

​Dependent Form Elements

​Example: Cascading Dropdowns

​Example: Conditional Form Inputs

​Complete Example

When to Use Form Cells

Important Notes

Available Input Types

Checkbox

Textbox

Dropdown

Static Options

Options with Display Labels

Dynamic Options from Previous Cells

Multi-Select Dropdown

Connections

Secrets

Using the Selected Secret in Subsequent Cells

Time Range

Time Expression Syntax

Using Time Range Values

Validation

Conditional Validation

Using Form Values in Subsequent Cells

In Python Cells

In Non-Python Cells

Dependent Form Elements

Example: Cascading Dropdowns

Example: Conditional Form Inputs

Complete Example
